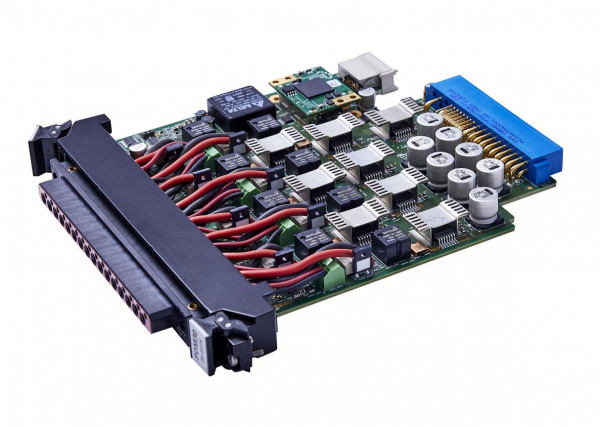

Switching module PDM30
Key facts:
- Switching/multiplexing of external, unipolar supply voltages +5.5V to 30V
- Multi-channel switching of high-current loads up to 25A
- Feeding of up to 4 different external sources
- Control via the GT4000's analogue bus
- potential-free
- Integrated voltage and current monitoring
- Stand-by current monitoring in the uA range
Order no.: 20-0229-02
